LAMP 5G R16
A rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.

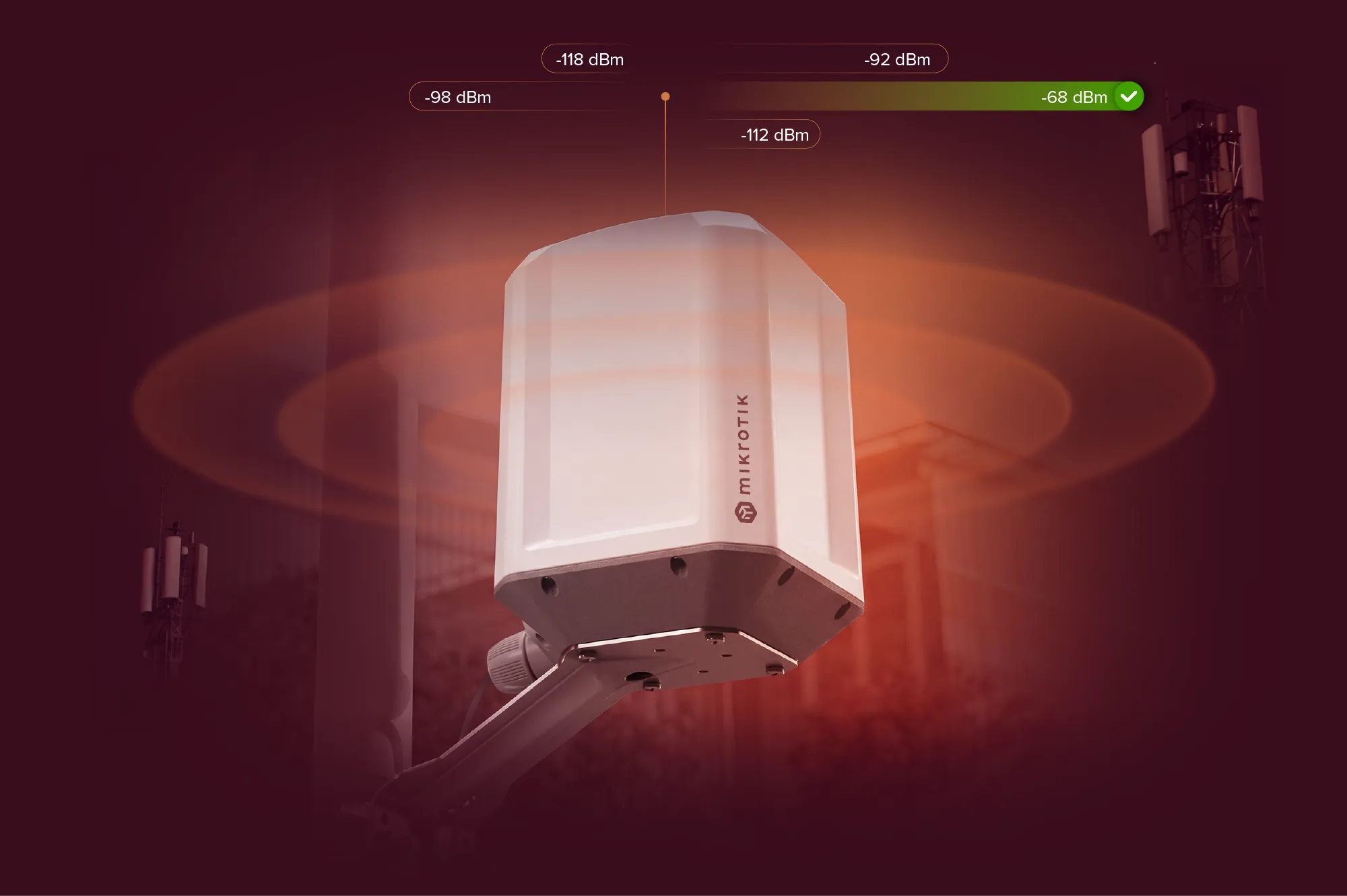

Not every location has a clear line to a single base station. In cities, ports, industrial sites, and busy transport hubs, there may be several towers within reach – and network conditions can change throughout the day.
LAMP 5G R16 takes a different approach. Instead of locking onto a single direction, its omnidirectional antenna system can connect to the best available network around it, helping maintain reliable service even when conditions change. A tower goes offline? Network conditions change? A better signal becomes available? LAMP 5G R16 can adapt without requiring antenna realignment.

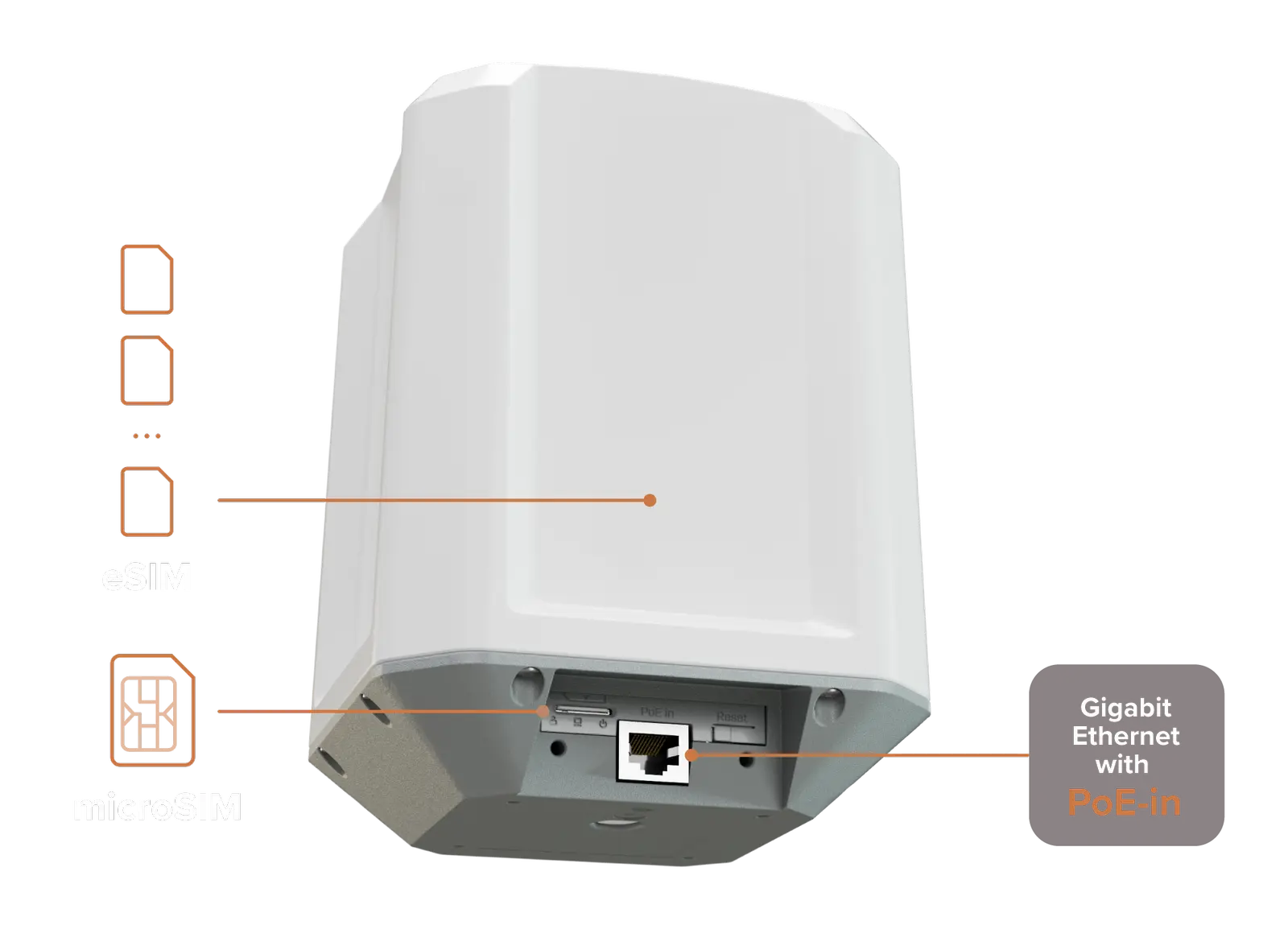

eSIM & MikroTik Connectivity –
get online faster and easier than ever!
Deploy devices without handling physical SIM cards. LAMP 5G R16 features a built-in eSIM, allowing operators to activate data plans remotely and bring new installations online in minutes. It is fully compatible with MikroTik Connectivity – our simple pre-activated data service that helps you get connected quickly, whether you're deploying a single device or managing a large network.
LAMP 5G R16
why settle for one tower when they all could be yours?
That’s the brighter approach to 5G connectivity.
Need even more flexibility? LAMP 5G R16 also supports third-party eSIM providers and multiple eSIM profiles. Store different operator plans on a single device and switch between them as your connectivity requirements change. Whether you're managing backup connections, roaming deployments, or multi-operator networks, LAMP gives you more options without needing to swap physical SIM cards.
Built for the outdoors… and even the sea!

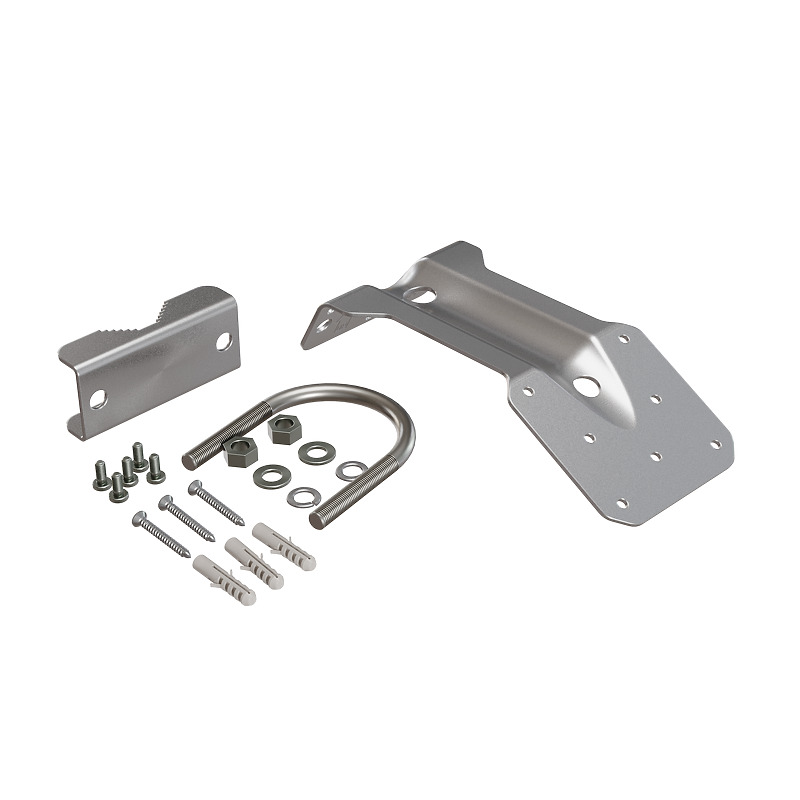

Rain, dust, heat, cold, or salty sea air – LAMP 5G R16 is ready for it. Designed to meet the EN 60945 maritime standard, together with its IP67-rated enclosure and stainless-steel mounting bracket, it is a reliable choice for demanding outdoor and marine deployments.
Whether deployed at ports, marinas, coastal infrastructure, or aboard vessels, the device is designed to meet the environmental and electromagnetic requirements expected in marine communication environments. Built-in GNSS support provides access to GPS, Galileo, BeiDou, and QZSS satellite systems. This enables accurate positioning information for fleet management, asset tracking, remote infrastructure, and location-aware* applications.
* GNSS functionality is intended for positioning, tracking, and non-critical location-aware applications. This device is not designed or certified for navigation, route guidance, or safety-critical marine navigation.
Specification
- Product code LAMPGM&RG520F-EU
- Suggested price $349.00
- Architecture ARM 64bit
- CPU 88F3720
- CPU core count 2
- CPU nominal frequency 800 MHz
- CPU Threads count 2
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 512 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 10 W
- Max power consumption without attachments 10 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-56 V
- 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
-
3G bands
1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)
- LTE Category 20 (DL: 2.0 Gbps; UL: 200 Mbps)
- MIMO DL 4x4
- MIMO UL 2x2
-
LTE FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
-
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
42 (3500 MHz)
43 (3700 MHz)
-
5G NSA FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
-
5G NSA TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)
-
5G SA FDD bands
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
-
5G SA TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)
- TAC 86945405
- 10/100/1000 Ethernet ports 1
- Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1
- Number of SIM slots 1 Modem (Micro SIM)
- Number of M.2 slots 1
- eSIM Yes
- Certification CE, EAC, ROHS
- IP 67
| LAMPGM&RG520F-EU | 88F3720 1G one port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.3 | 987.3 | 235.0 | 962.6 | 789.9 | 404.4 |
| Bridging | 25 bridge filter rules | 81.3 | 987.3 | 221.3 | 906.4 | 678.3 | 347.3 |
| Routing | none (fast path) | 81.3 | 987.3 | 235.0 | 962.6 | 790.4 | 404.7 |
| Routing | 25 simple queues | 81.3 | 987.3 | 235.0 | 962.6 | 450.0 | 230.4 |
| Routing | 25 ip filter rules | 81.3 | 987.3 | 219.8 | 900.3 | 219.5 | 112.4 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
